Foot pedals that simulate an external keyboard

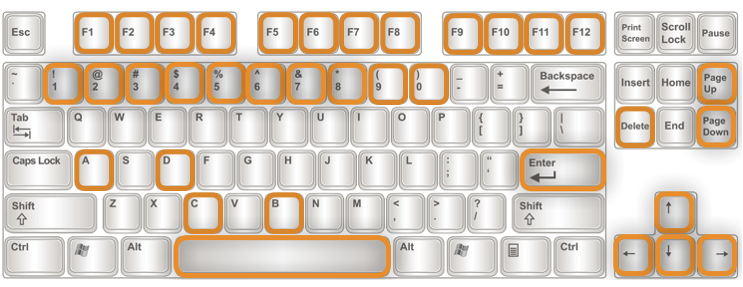

SongBook+ supports all foot pedals that simulate an external keyboard and can send one or more of the following keys:

info

Until version 6.3, the settings for foot pedals are found directly at the first level of the settings.

Starting from version 6.4, they are found in a new group "Remote control" along with the new settings for control with facial expressions.

warning

For this type of foot pedal to work, the "Keyboard Control" function must be turned off in the iPad or iPhone settings under "Accessibility" in "Keyboards & Text Input."

Otherwise, the operating system uses some of the pressed keys for itself, and SongBook+ can no longer respond to them.

In the settings, you can activate the use of foot pedals and assign the following actions to the keys, among other things:

• Do nothing
• Move one page forward/backward
• Press the start/stop/pause/resume button
• Jump to the next song
• Return to the song list
• Open song preselection list
• Start/pause/resume scrolling
• Scroll faster/slower
• Move a whole/half/third/quarter page forward or backward
• Toggle automatic playback on/off
• Start/stop the metronome
• Play jingles
• Toggle loops on/off
• Trigger all function buttons on the current page
• Trigger specific function buttons on the current page
• Trigger one function button after another on the current page
• Adjust the device volume (louder, quieter)
• Activate the search field and set the cursor in the field
• Trigger MIDI macros
• ...

In the Midi and Bluetooth Monitor, you can see which keys your foot pedal sends.

info

Of course, these signals don't necessarily have to come from a foot pedal. You can also use a proper external keyboard instead.

For example, you can use the following foot pedals with this function:

• AirTurn BT-105/BT-106/DIGIT/QUAD/DUO/PED/PEDpro/BT200S-x (www.airturn.com) connected via Bluetooth
• STOMP from Coda Music Technologies (https://www.codamusictech.com)
• Cicada/Firefly/Dragonfly/Butterfly from PageFlip (www.pageflip.com) connected via Bluetooth
• iRig BlueTurn from IK Multimedia (www.ikmultimedia.com) connected via Bluetooth
• BT-2, BT4 from Positive Grid (https://www.positivegrid.com)
• BT-FP2 from Strich Music

Here you can find some separate guides for various foot pedals: https://baumsoftware.freshdesk.com/en/support/solutions/articles/17000090996
